Hlavní stránka > Elektrokola>BMC Roadmachine 01 AMP X TWO 2023

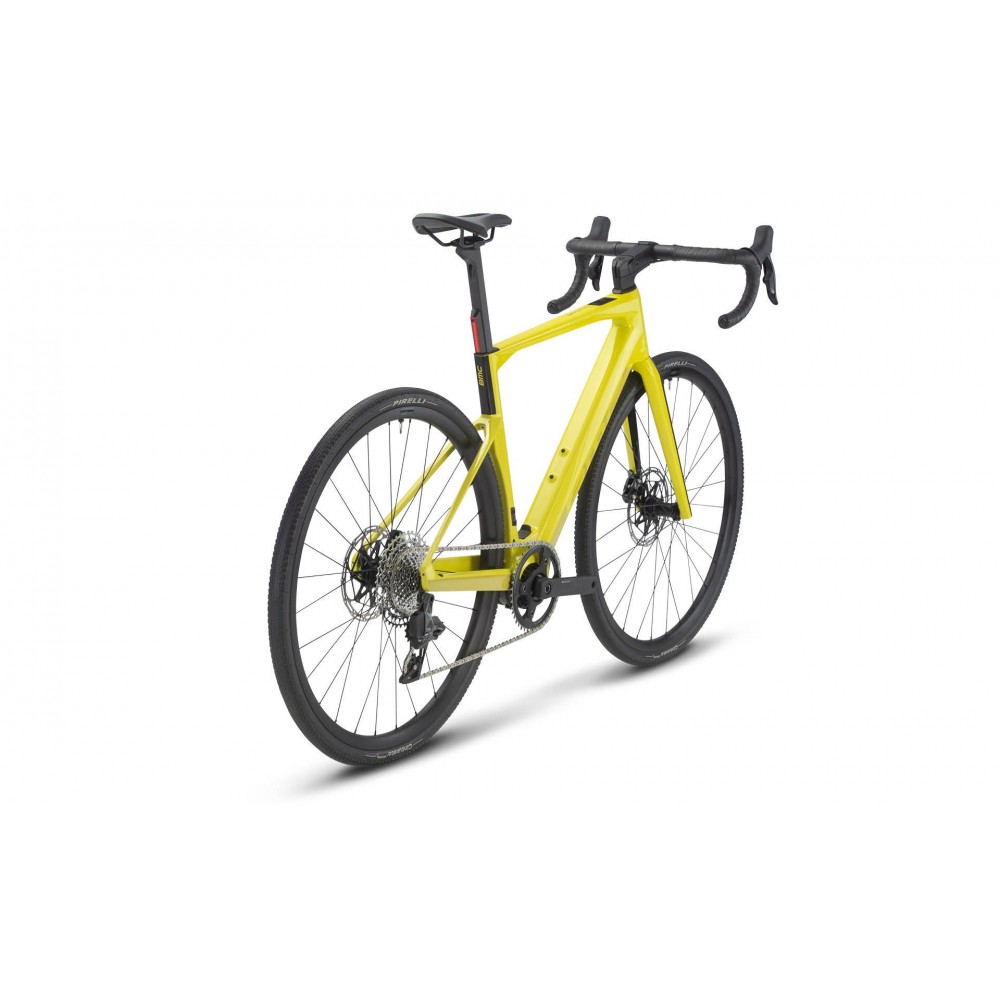

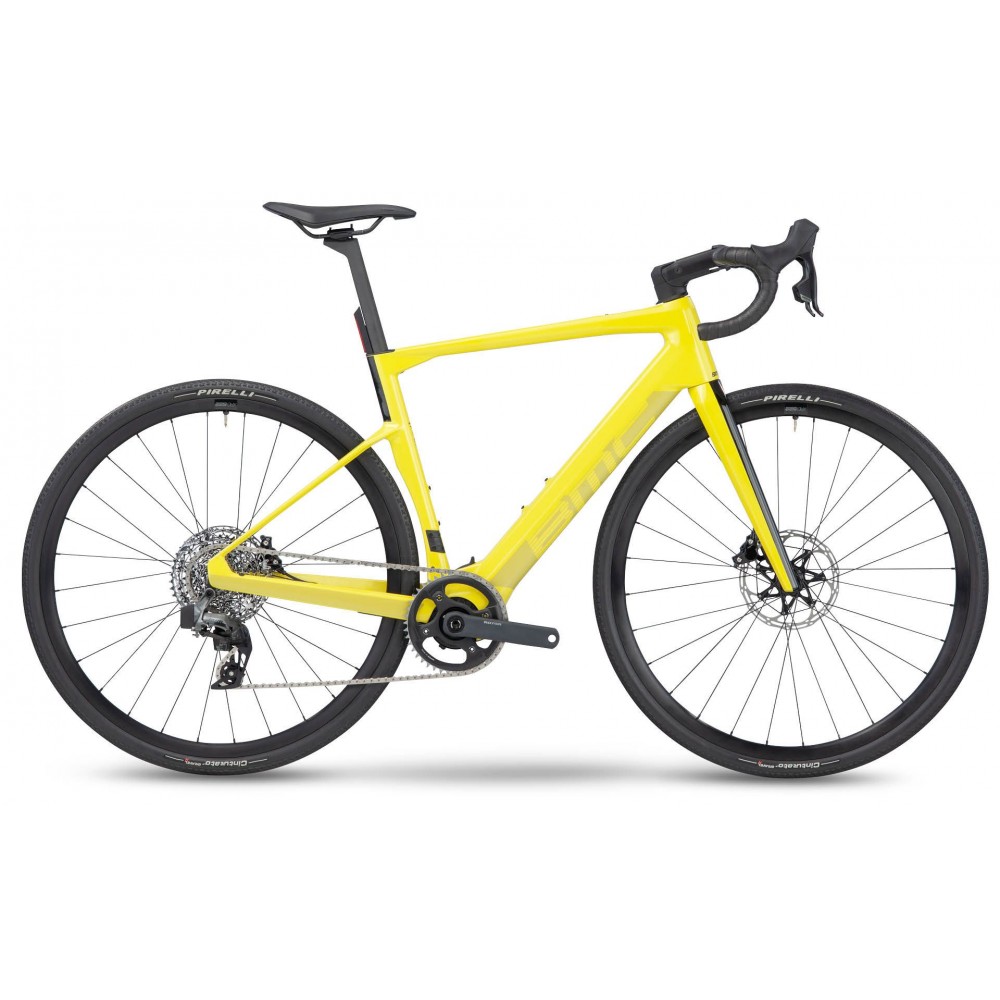

BMC Roadmachine 01 AMP X TWO 2023 Zobrazit v plné velikosti

BMC Roadmachine 01 AMP X TWO 2023

Dostupnost: skladem u výrobce, dodání 5 dnů

159 999 Kč

Sleva!

-42 000 Kč

201 999 Kč (-21%)

Spec SRAM Rival AXS XPLR
Frame Roadmachine 01 AMP X Premium Carbon with Tuned Compliance Concept Endurance • Integrated Battery • Integrated Rear Light • Internal Cable Routing • Flat Mount Disc • 12x142mm Thru-Axle
Sizes 47 - 51 - 54 - 56 - 58 - 61
Drive Unit TQ-HPR50 Drive Unit
Drive Unit Control TQ V02 Remote
Display TQ V01 Display, 2" O-LED, Bluetooth / ANT+
Battery Pack TQ 360 Wh Battery
Charger TQ HPR-50 4A Charger
Fork Roadmachine 01 AMP X Premium Carbon with Tuned Compliance Concept Endurance • Internal Cable Routing • Flat Mount Disc • 12x100mm Thru-Axle
Gears 1x12
Chainwheel Rotor eVegast / SRAM X-Sync 44T
Cassette SRAM RIVAL AXS XPLR XG-1251 10-44T
Chain SRAM RIVAL 12 Speed
Rear Derailleur SRAM Rival XPLR eTap AXS
Shifters SRAM Rival eTap AXS
Brakes SRAM Rival eTap AXS HRD, Centerline X Rotors (180/180)
Handlebar BMC RAB 02, Ergo Top Shape, Compact Bend
Stem ICS MTT x Redshift Suspension Stem, Integrated Cockpit Design
Seatpost Roadmachine 01 AMP X Premium Carbon D-Shaped Seatpost • 15mm Offset
Saddle Fizik Terra Argo X5 (150mm)
Hubs XRD-522
Rims XRD-522, Tubeless Ready, 25 mm
Tires Pirelli Cinturato Gravel H, 35mm
Tire Clearance 38mm (Measured Width)
Model Year 2023
Weight Limit 120 Kg
ASTM Classification Level 2



Geometry

  47 51 54 56 58 61
Rider Height CM <162 162-174 172-180 178-186 184-192 >190
Top Tube MM (tt) 519 535 544 556 568 581
Wheelbase MM (wb) 982 1000 997 1010 1023 1036
Seat Tube Angle (sa) 74.2 74.2 74.2 74.2 74.2 74.2
Seatpost Length MM 330 380 380 380 380 430
Stack MM 525 550 570 595 620 645
Trail MM (trail) 63 63 63 63 63 63
Rear Center MM (rc) 415 415 415 415 415 415
Reach MM (reach) 370 379 383 388 393 398
Head Tube MM (ht) 112 138 154 181 207 233
Head Angle (ha) 71.4 71.4 72.2 72.2 72.2 72.2
BB Drop MM (drop) 75 75 75 75 75 75
Stem Length MM 90 90 100 110 110 120
Seat Tube MM (st) 420 460 500 525 545 575
Stem Angle -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
Post Offset MM 15 15 15 15 15 15
Crank Length MM 170 170 170 170 170 170
Fork Rake MM (fr) 50 50 45 45 45 45
Front Center MM (fc) 579 596 594 607 620 633
Fork Length MM (fl) 380 380 380 380 380 380
Bar Width MM 400 420 420 420 420 440
Bar Reach MM 70 70 70 70 70 70
Bar Drop MM 125 125 125 125 125 125
Standover Height mm 728 755 786 810 829 850
